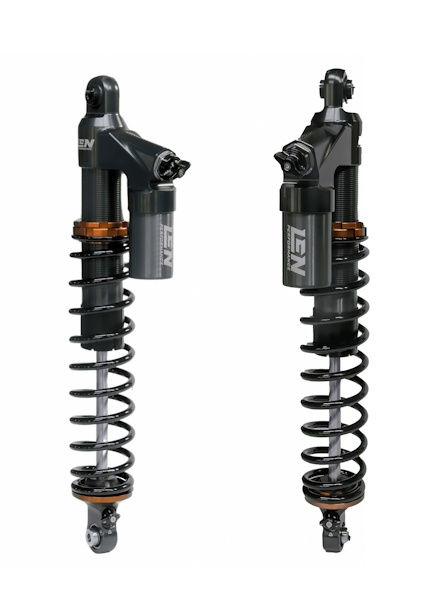

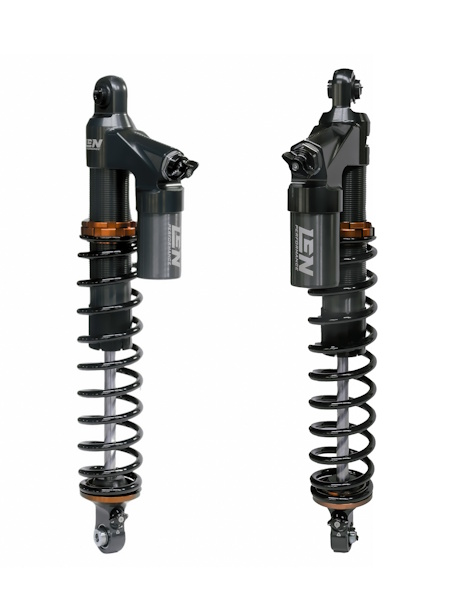

LS8-80000K
| SHOCK LOCATION | SKI SHOCK KIT | |
|---|---|---|
| SHOCK WEIGHT (lbs) | 8.10 | |
| SHOCK | LS8-80000LH | |
| QTY | 1 | |
| SHOCK | LS8-80000RH | |
| QTY | 1 | |
LS8-80000LH
| SHOCK LOCATION | SKI | |
|---|---|---|
| SHOCK WEIGHT (lbs) | 4.05 | |
| SHOCK LENGTH OPEN | (MM) | 448.0 |
| (INCH) | 17.6 | |
| SHOCK LENGTH CLOSED | (MM) | 298.0 |
| (INCH) | 11.7 | |
| SHOCK STROKE LENGTH | (MM) | 150.0 |
| (INCH) | 5.9 | |
| EYELET TOP ID | (MM) | 8.0 |
| (INCH) | 0.3 | |
| EYELET TOP WIDTH | (MM) | 30.6 |
| (INCH) | 1.2 | |
| EYELET BOTTOM ID | (MM) | 8.0 |
| (INCH) | 0.3 | |
| EYELET BOTTOM WIDTH | (MM) | 30.6 |
| (INCH) | 1.2 | |
| SPRING DIAMETER | (MM) | 75.7 |
| (INCH) | 3.0 | |
LS8-80000RH
| SHOCK LOCATION | SKI | |
|---|---|---|
| SHOCK WEIGHT (lbs) | 4.05 | |
| SHOCK LENGTH OPEN | (MM) | 448.0 |
| (INCH) | 17.6 | |
| SHOCK LENGTH CLOSED | (MM) | 298.0 |
| (INCH) | 11.7 | |
| SHOCK STROKE LENGTH | (MM) | 150.0 |
| (INCH) | 5.9 | |
| EYELET TOP ID | (MM) | 8.0 |
| (INCH) | 0.3 | |
| EYELET TOP WIDTH | (MM) | 30.6 |
| (INCH) | 1.2 | |
| EYELET BOTTOM ID | (MM) | 8.0 |
| (INCH) | 0.3 | |
| EYELET BOTTOM WIDTH | (MM) | 30.6 |
| (INCH) | 1.2 | |
| SPRING DIAMETER | (MM) | 75.7 |
| (INCH) | 3.0 | |
