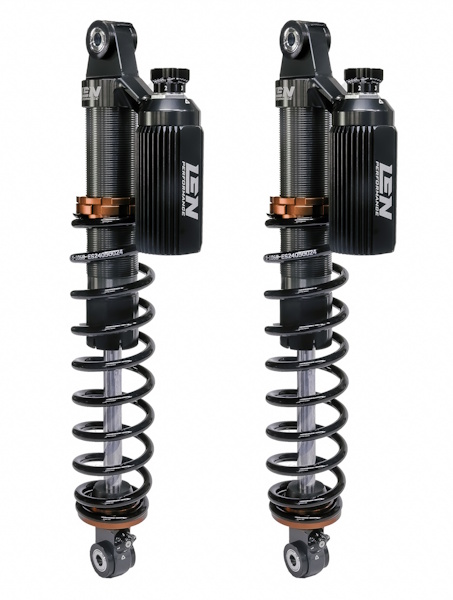

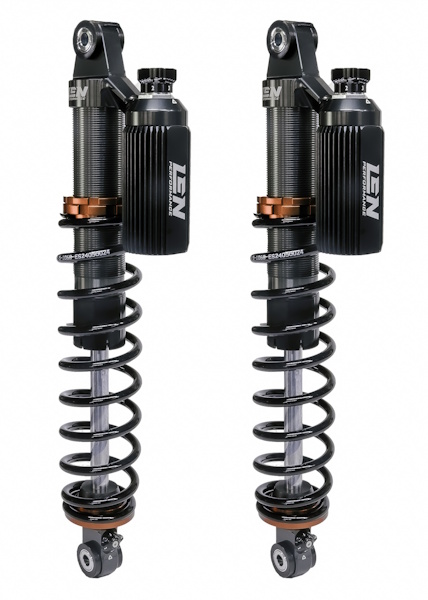

LS8-50000K
| SHOCK LOCATION | SKI SHOCK KIT | |
|---|---|---|
| SHOCK WEIGHT (lbs) | 9.70 | |
| SHOCK | LS8-50000 | |
| QTY | 2 | |
LS8-50000
| SHOCK LOCATION | SKI | |
|---|---|---|
| SHOCK WEIGHT (lbs) | 4.85 | |
| SHOCK LENGTH OPEN | (MM) | 405.0 |
| (INCH) | 15.9 | |
| SHOCK LENGTH CLOSED | (MM) | 269.0 |
| (INCH) | 10.6 | |
| SHOCK STROKE LENGTH | (MM) | 136.0 |
| (INCH) | 5.4 | |
| EYELET TOP ID | (MM) | 17.0 |
| (INCH) | 0.7 | |
| EYELET TOP WIDTH | (MM) | 29.5 |
| (INCH) | 1.2 | |
| EYELET BOTTOM ID | (MM) | 17.2 |
| (INCH) | 0.7 | |
| EYELET BOTTOM WIDTH | (MM) | 30.1 |
| (INCH) | 1.2 | |
| SPRING DIAMETER | (MM) | 74.5 |
| (INCH) | 2.9 | |
