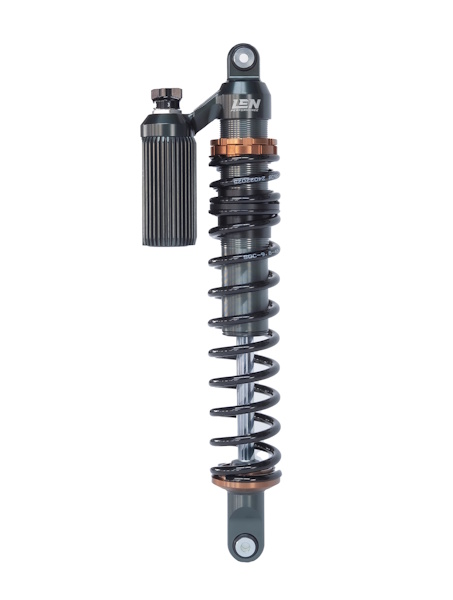

LS8-11001
| SHOCK LOCATION | SKI | |
|---|---|---|
| SHOCK WEIGHT (lbs) | 5.55 | |
| SHOCK LENGTH OPEN | 435mm / 17.13inch | |
| SHOCK LENGTH CLOSED | 305mm / 12.01inch | |
| SHOCK STROKE LENGTH | 130mm / 5.12inch | |
| EYELET TOP ID | 8mm / 0.32inch | |
| EYELET TOP WIDTH | 24mm / 0.95inch | |
| EYELET BOTTOM ID | 8mm / 0.32inch | |
| EYELET BOTTOM WIDTH | 25.4mm / 1inch | |
| SPRING DIAMETER | 63mm / 2.49inch | |
| SHOCK FEATURED ADJUSTMENTS | |
|---|---|
| COMPRESSION ADJUSTMENTS | REBOUND ADJUSTMENTS |
| 5 | 5 |
