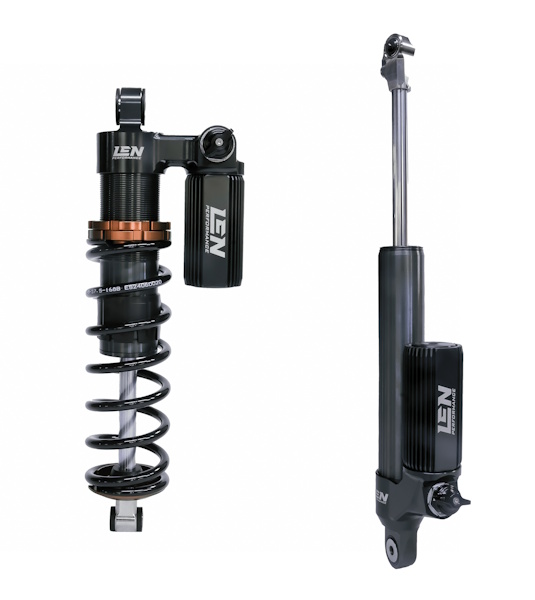

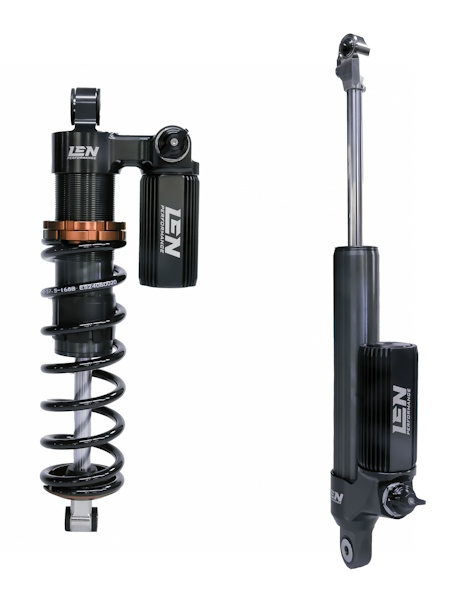

LS4-80001K
| SHOCK LOCATION | TRACK SHOCK KIT | |
|---|---|---|
| SHOCK WEIGHT (lbs) | 9.55 | |
| SHOCK | LS4-80001F | |
| QTY | 1 | |
| SHOCK | LS4-80001R | |
| QTY | 1 | |
LS4-80001F
| SHOCK LOCATION | FRONT TRACK | |
|---|---|---|
| SHOCK WEIGHT (lbs) | 5.85 | |
| SHOCK LENGTH OPEN | (MM) | 365.0 |
| (INCH) | 14.4 | |
| SHOCK LENGTH CLOSED | (MM) | 251.0 |
| (INCH) | 9.9 | |
| SHOCK STROKE LENGTH | (MM) | 114.0 |
| (INCH) | 4.5 | |
| EYELET TOP ID | (MM) | 12.5 |
| (INCH) | 0.5 | |
| EYELET TOP WIDTH | (MM) | 25.2 |
| (INCH) | 1.0 | |
| EYELET BOTTOM ID | (MM) | 10.1 |
| (INCH) | 0.4 | |
| EYELET BOTTOM WIDTH | (MM) | 29.5 |
| (INCH) | 1.2 | |
| SPRING DIAMETER | (MM) | 77.4 |
| (INCH) | 3.0 | |
LS4-80001R
| SHOCK LOCATION | REAR TRACK | |
|---|---|---|
| SHOCK WEIGHT (lbs) | 3.70 | |
| SHOCK LENGTH OPEN | (MM) | 426.0 |
| (INCH) | 16.8 | |
| SHOCK LENGTH CLOSED | (MM) | 277.0 |
| (INCH) | 10.9 | |
| SHOCK STROKE LENGTH | (MM) | 149.0 |
| (INCH) | 5.9 | |
| EYELET TOP ID | (MM) | 8.1 |
| (INCH) | 0.3 | |
| EYELET TOP WIDTH | (MM) | 19.7 |
| (INCH) | 0.8 | |
| EYELET BOTTOM ID | (MM) | 8.0 |
| (INCH) | 0.3 | |
| EYELET BOTTOM WIDTH | (MM) | 19.7 |
| (INCH) | 0.8 | |
| SPRING DIAMETER | (MM) | N/A |
| (INCH) | N/A | |
