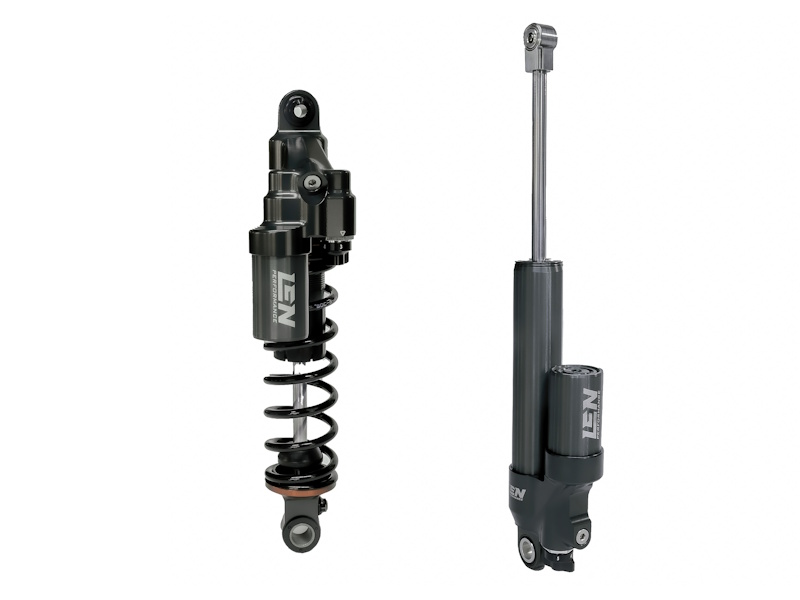

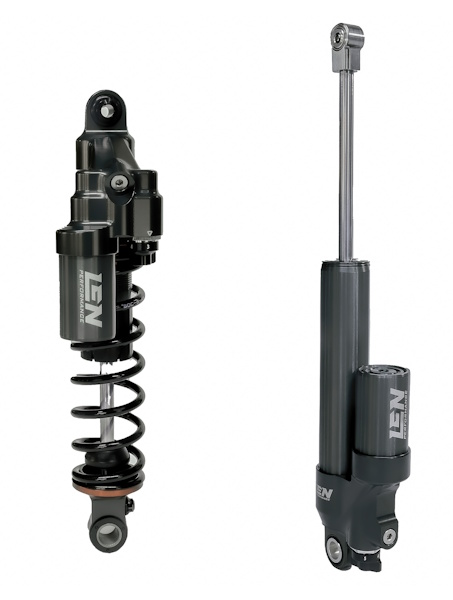

LS4-80000K
| SHOCK LOCATION | TRACK SHOCK KIT | |
|---|---|---|
| NOTE | KIT USES | |
| SHOCK | LS4-80000F | |
| QTY | 1 | |
| SHOCK | LS4-80000R | |
| QTY | 1 | |
LS4-80000F
| SHOCK LOCATION | FRONT TRACK | |
|---|---|---|
| SHOCK WEIGHT (lbs) | 4.45 | |
| SHOCK LENGTH OPEN | 362mm / 14.3inch | |
| SHOCK LENGTH CLOSED | 267mm / 10.5inch | |
| SHOCK STROKE LENGTH | 95mm / 3.7inch | |
| EYELET TOP ID | 10.2mm / 0.4inch | |
| EYELET TOP WIDTH | 30mm / 1.2inch | |
| EYELET BOTTOM ID | 17.6mm / 0.7inch | |
| EYELET BOTTOM WIDTH | 25.3mm / 1.0inch | |
| SPRING DIAMETER | 65mm / 2.6inch | |
LS4-80000R
| SHOCK LOCATION | REAR TRACK | |
|---|---|---|
| SHOCK WEIGHT (lbs) | 3.30 | |
| SHOCK LENGTH OPEN | 440mm / 17.3inch | |
| SHOCK LENGTH CLOSED | 288mm / 11.3inch | |
| SHOCK STROKE LENGTH | 152mm / 6inch | |
| EYELET TOP ID | 15.9mm / 0.6inch | |
| EYELET TOP WIDTH | 19.9mm / 0.8inch | |
| EYELET BOTTOM ID | 8.1mm / 0.3inch | |
| EYELET BOTTOM WIDTH | 19.8mm / 0.8inch | |
| SPRING DIAMETER | N/A | |
