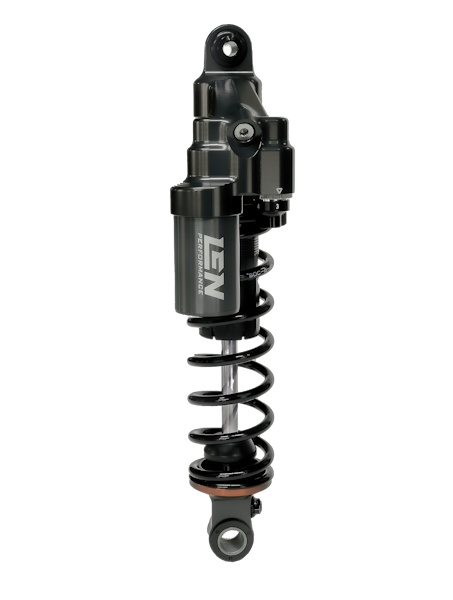

LS4-80000F
| SHOCK LOCATION | FRONT TRACK | |
|---|---|---|
| SHOCK WEIGHT (lbs) | 4.45 | |
| SHOCK LENGTH OPEN | 362mm / 14.3inch | |
| SHOCK LENGTH CLOSED | 267mm / 10.5inch | |
| SHOCK STROKE LENGTH | 95mm / 3.7inch | |
| EYELET TOP ID | 10.2mm / 0.4inch | |
| EYELET TOP WIDTH | 30mm / 1.2inch | |
| EYELET BOTTOM ID | 17.6mm / 0.7inch | |
| EYELET BOTTOM WIDTH | 25.3mm / 1.0inch | |
| SPRING DIAMETER | 65mm / 2.6inch | |
| SHOCK FEATURED ADJUSTMENTS | |
|---|---|
| COMPRESSION ADJUSTMENTS | REBOUND ADJUSTMENTS |
| 5 | 5 |
