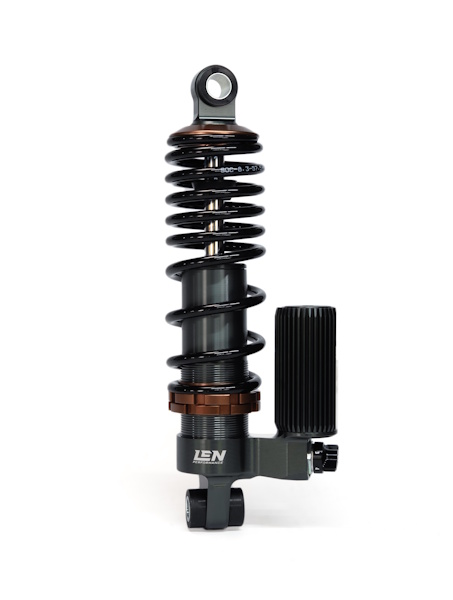

LS4-50003F
| SHOCK LOCATION | FRONT TRACK SHOCK | |
|---|---|---|
| SHOCK WEIGHT (lbs) | 5.20 | |
| SHOCK LENGTH OPEN | 329mm / 12.96inch | |
| SHOCK LENGTH CLOSED | 232mm / 9.14inch | |
| SHOCK STROKE LENGTH | 97mm / 3.82inch | |
| EYELET TOP ID | 14.5mm / 0.58inch | |
| EYELET TOP WIDTH | 42.7mm / inch | |
| EYELET BOTTOM ID | 18mm / 0.71inch | |
| EYELET BOTTOM WIDTH | 29.5mm / 1.17inch | |
| SPRING DIAMETER | 72mm / 2.84inch | |
| SHOCK FEATURED ADJUSTMENTS | |
|---|---|
| COMPRESSION ADJUSTMENTS | REBOUND ADJUSTMENTS |
| 5 | |
