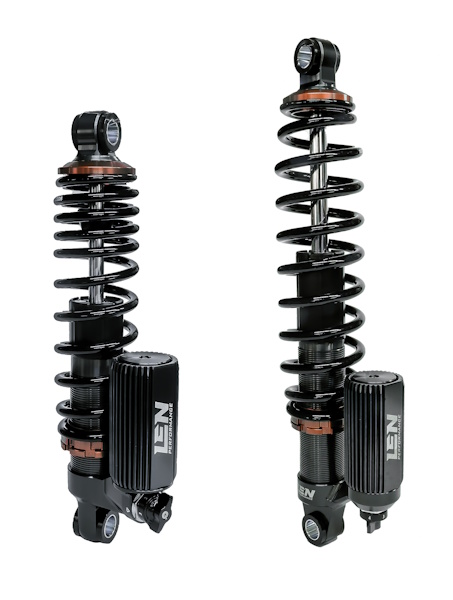

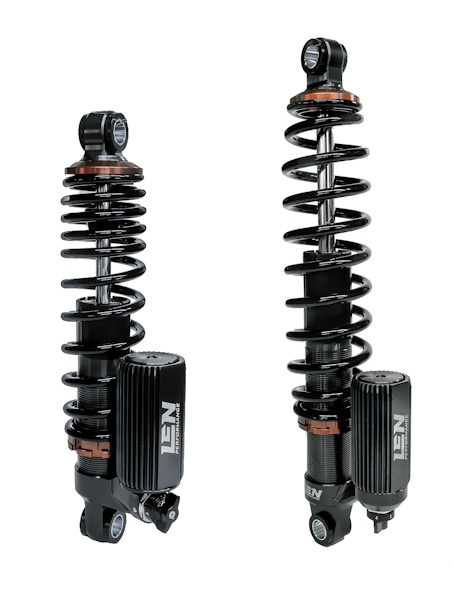

LS4-50001K
| SHOCK LOCATION | TRACK SHOCK KIT | |
|---|---|---|
| SHOCK WEIGHT (lbs) | 10.45 | |
| SHOCK | LS4-50001F | |
| QTY | 1 | |
| SHOCK | LS4-50001R | |
| QTY | 1 | |
LS4-50001F
| SHOCK LOCATION | FRONT TRACK | |
|---|---|---|
| SHOCK WEIGHT (lbs) | 4.35 | |
| SHOCK LENGTH OPEN | (MM) | 332.0 |
| (INCH) | 13.1 | |
| SHOCK LENGTH CLOSED | (MM) | 247.0 |
| (INCH) | 9.7 | |
| SHOCK STROKE LENGTH | (MM) | 85.0 |
| (INCH) | 3.3 | |
| EYELET TOP ID | (MM) | 17.7 |
| (INCH) | 0.7 | |
| EYELET TOP WIDTH | (MM) | 29.7 |
| (INCH) | 1.2 | |
| EYELET BOTTOM ID | (MM) | 17.7 |
| (INCH) | 0.7 | |
| EYELET BOTTOM WIDTH | (MM) | 29.2 |
| (INCH) | 1.1 | |
| SPRING DIAMETER | (MM) | 7.8 |
| (INCH) | 0.3 | |
LS4-50001R
| SHOCK LOCATION | REAR TRACK | |
|---|---|---|
| SHOCK WEIGHT (lbs) | 6.10 | |
| SHOCK LENGTH OPEN | (MM) | 442.0 |
| (INCH) | 17.4 | |
| SHOCK LENGTH CLOSED | (MM) | 307.0 |
| (INCH) | 12.1 | |
| SHOCK STROKE LENGTH | (MM) | 135.0 |
| (INCH) | 5.3 | |
| EYELET TOP ID | (MM) | 17.3 |
| (INCH) | 0.7 | |
| EYELET TOP WIDTH | (MM) | 29.2 |
| (INCH) | 1.1 | |
| EYELET BOTTOM ID | (MM) | 17.8 |
| (INCH) | 0.7 | |
| EYELET BOTTOM WIDTH | (MM) | 29.3 |
| (INCH) | 1.2 | |
| SPRING DIAMETER | (MM) | 85.0 |
| (INCH) | 3.3 | |
