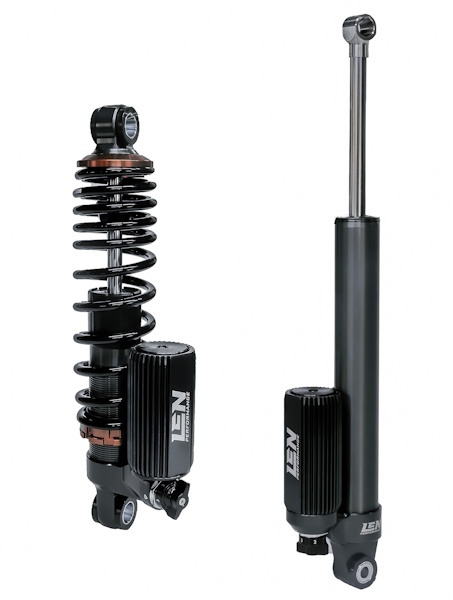

LS4-50000K
| SHOCK LOCATION | TRACK SHOCK KIT | |
|---|---|---|
| SHOCK WEIGHT (lbs) | 7.90 | |
| SHOCK | LS4-50000F | |
| QTY | 1 | |
| SHOCK | LS4-50000R | |
| QTY | 1 | |
LS4-50000F
| SHOCK LOCATION | FRONT TRACK | |
|---|---|---|
| SHOCK WEIGHT (lbs) | 4.35 | |
| SHOCK LENGTH OPEN | (MM) | 332.0 |
| (INCH) | 13.1 | |
| SHOCK LENGTH CLOSED | (MM) | 247.0 |
| (INCH) | 9.7 | |
| SHOCK STROKE LENGTH | (MM) | 85.0 |
| (INCH) | 3.3 | |
| EYELET TOP ID | (MM) | 17.7 |
| (INCH) | 0.7 | |
| EYELET TOP WIDTH | (MM) | 29.7 |
| (INCH) | 1.2 | |
| EYELET BOTTOM ID | (MM) | 17.7 |
| (INCH) | 0.7 | |
| EYELET BOTTOM WIDTH | (MM) | 22.2 |
| (INCH) | 0.9 | |
| SPRING DIAMETER | (MM) | 71.0 |
| (INCH) | 2.8 | |
LS4-50000R
| SHOCK LOCATION | REAR TRACK | |
|---|---|---|
| SHOCK WEIGHT (lbs) | 3.55 | |
| SHOCK LENGTH OPEN | (MM) | 490.0 |
| (INCH) | 19.3 | |
| SHOCK LENGTH CLOSED | (MM) | 327.0 |
| (INCH) | 12.9 | |
| SHOCK STROKE LENGTH | (MM) | 163.0 |
| (INCH) | 6.4 | |
| EYELET TOP ID | (MM) | 17.7 |
| (INCH) | 0.7 | |
| EYELET TOP WIDTH | (MM) | 29.3 |
| (INCH) | 1.2 | |
| EYELET BOTTOM ID | (MM) | 15.9 |
| (INCH) | 0.6 | |
| EYELET BOTTOM WIDTH | (MM) | 29.2 |
| (INCH) | 1.1 | |
| SPRING DIAMETER | (MM) | N/A |
| (INCH) | N/A | |
