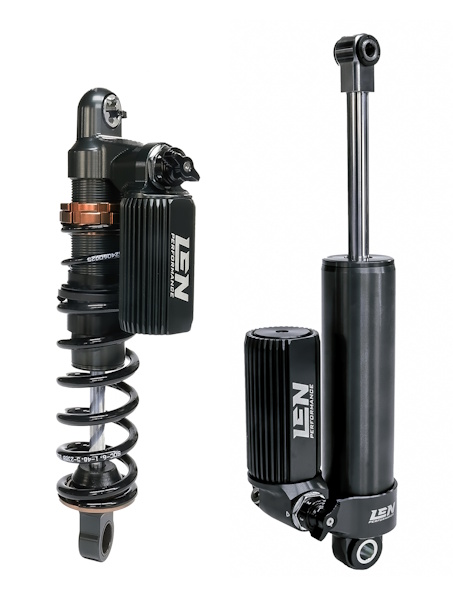

LS4-11000K
| SHOCK LOCATION | TRACK SHOCK KIT | |
|---|---|---|
| SHOCK WEIGHT (lbs) | 8.20 | |
| SHOCK | LS4-11000F | |
| QTY | 1 | |
| SHOCK | LS4-11000R | |
| QTY | 1 | |
LS4-11000F
| SHOCK LOCATION | FRONT TRACK | |
|---|---|---|
| SHOCK WEIGHT (lbs) | 4.25 | |
| SHOCK LENGTH OPEN | (MM) | 315.0 |
| (INCH) | 12.4 | |
| SHOCK LENGTH CLOSED | (MM) | 220.0 |
| (INCH) | 8,7 | |
| SHOCK STROKE LENGTH | (MM) | 95.0 |
| (INCH) | 3.7 | |
| EYELET TOP ID | (MM) | 22.3 |
| (INCH) | 0.9 | |
| EYELET TOP WIDTH | (MM) | 22.4 |
| (INCH) | 0.9 | |
| EYELET BOTTOM ID | (MM) | 22.3 |
| (INCH) | 0.9 | |
| EYELET BOTTOM WIDTH | (MM) | 18.4 |
| (INCH) | 0.7 | |
| SPRING DIAMETER | (MM) | 65.3 |
| (INCH) | 2.6 | |
LS4-11000R
| SHOCK LOCATION | REAR TRACK | |
|---|---|---|
| SHOCK WEIGHT (lbs) | 3.95 | |
| SHOCK LENGTH OPEN | (MM) | 386.0 |
| (INCH) | 15.2 | |
| SHOCK LENGTH CLOSED | (MM) | 264.0 |
| (INCH) | 10.4 | |
| SHOCK STROKE LENGTH | (MM) | 122.0 |
| (INCH) | 4.8 | |
| EYELET TOP ID | (MM) | 14.3 |
| (INCH) | 0.6 | |
| EYELET TOP WIDTH | (MM) | 24.8 |
| (INCH) | 1.0 | |
| EYELET BOTTOM ID | (MM) | 10.3 |
| (INCH) | 0.4 | |
| EYELET BOTTOM WIDTH | (MM) | 25.3 |
| (INCH) | 1.0 | |
| SPRING DIAMETER | (MM) | N/A |
| (INCH) | N/A | |
