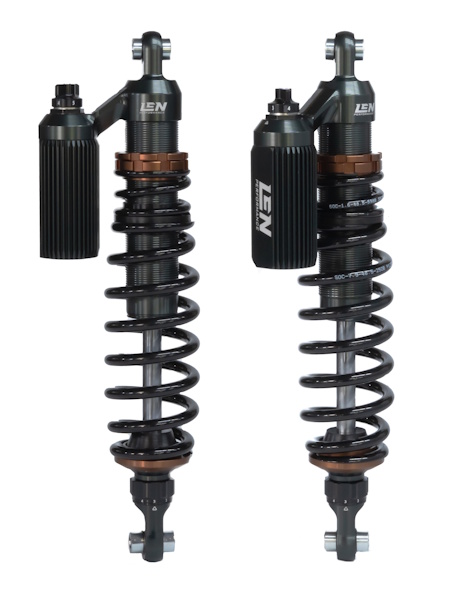

LA8-50000K
| SHOCK LOCATION | FRONT SHOCK KIT | |
|---|---|---|
| SHOCK WEIGHT | TBD | |
| NOTE | KIT USES | |
| SHOCK | LA8-50000RH | |
| QTY | 1 | |
| SHOCK | LA8-50000LH | |
| QTY | 1 | |
LA8-50000RH
| SHOCK LOCATION | FRONT SHOCK | |
|---|---|---|
| SHOCK WEIGHT | TBD | |
| SHOCK LENGTH OPEN | 400mm / 15.75" | |
| SHOCK LENGTH CLOSED | 285mm / 11.22" | |
| SHOCK STROKE LENGTH | 115mm / 4.53" | |
| SHAFT WIDTH | 16mm / 0.63" | |
| TUBE WIDTH | 44mm / 1.73" | |
| EYELET TOP ID | 10.2mm / 0.40" | |
| EYELET TOP WIDTH | 30mm / 1.18" | |
| EYELET BOTTOM ID | 10.2mm / 0.42" | |
| EYELET BOTTOM WIDTH | 36mm / 1.42" | |
LA8-50000LH
| SHOCK LOCATION | FRONT SHOCK | |
|---|---|---|
| SHOCK WEIGHT | TBD | |
| SHOCK LENGTH OPEN | 400mm / 15.75" | |
| SHOCK LENGTH CLOSED | 285mm / 11.22" | |
| SHOCK STROKE LENGTH | 115mm / 4.53" | |
| SHAFT WIDTH | 16mm / 0.63" | |
| TUBE WIDTH | 44mm / 1.73" | |
| EYELET TOP ID | 10.2mm / 0.40" | |
| EYELET TOP WIDTH | 30mm / 1.18" | |
| EYELET BOTTOM ID | 10.2mm / 0.42" | |
| EYELET BOTTOM WIDTH | 36mm / 1.42" | |
